KLM A90/91 Supra 6-Port Turbo Kit
KLM A90/91 Supra 6-Port Turbo Kit
Regular price
$8,174.48 USD
Regular price
Sale price
$8,174.48 USD
Unit price
per
Couldn't load pickup availability

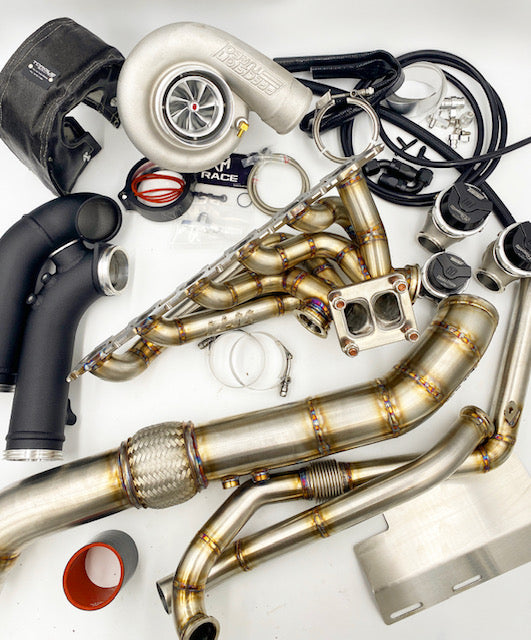

1.) Turbo [PTE 6870] OR [PTE 6466]
2.) Wastegates [TS 40mm ] OR [TS 45mm]
3.) Blow off Valve [Ts Gen V]
4.) Coupler [3″] OR [2.5-3″]
5.) Hose clamps [(2)X3″] OR [(1)X2.5″/(1) X3″]

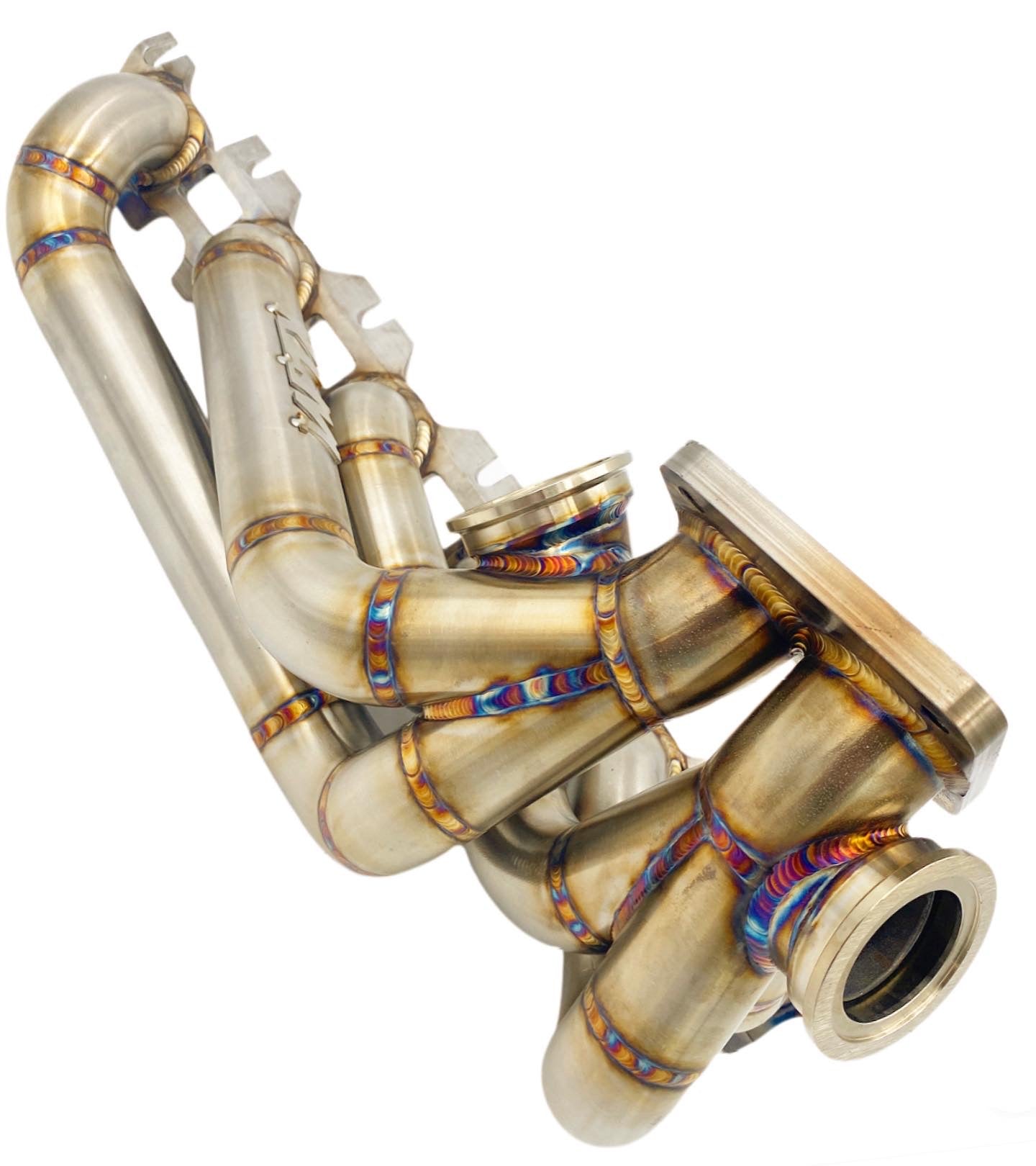

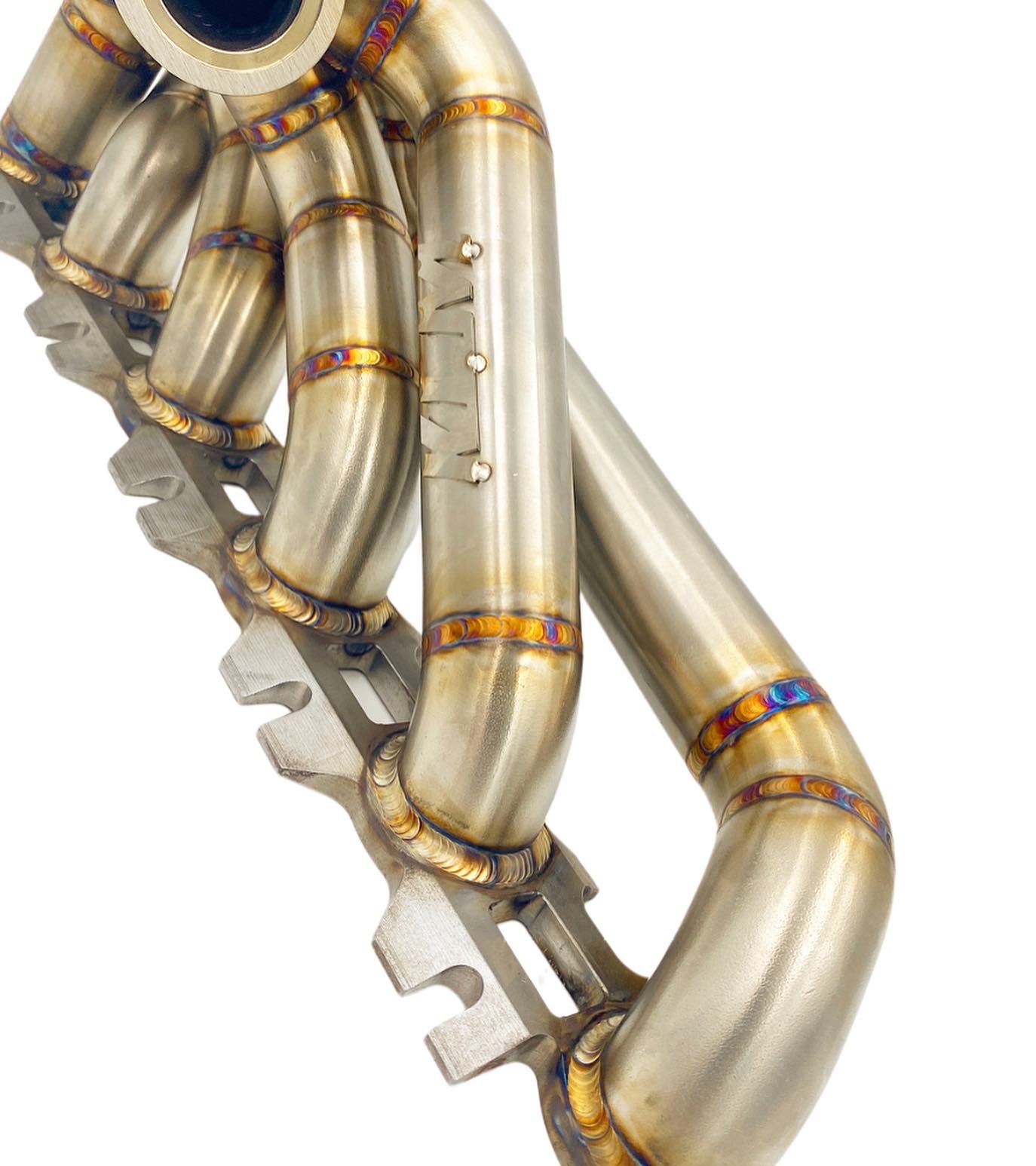

6.) Manifold True Twin Scroll T4 Divided Dual Wastegate
7.) 3.5″ Down Pipe
8.) Dump Tubes (X2)

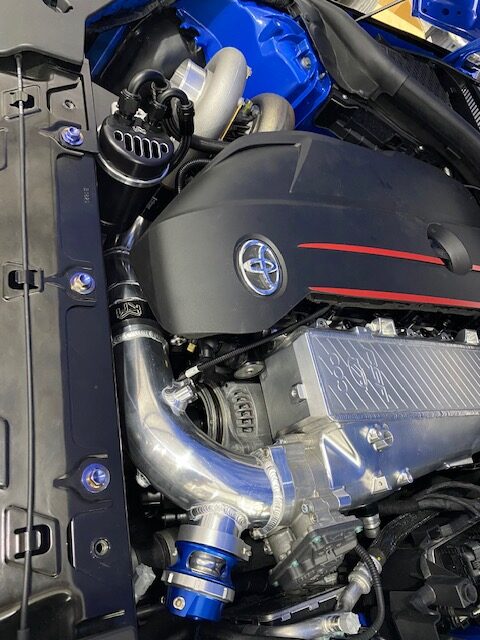

9.) Intercooler Piping with 3 Weld Fittings/ 1 BOV Flange
10.) 3″ Pro Clamp Full Assembly
11.) Vband Clamp for Down Pipe
12.) Turbo Studs & Turbo Gasket (Trimed Studs)
13.) 10AN Nylon Braid Hose (X2 Feet)
14.) 10AN Hose end Fitting 1 X 45Degree
15.) 10 AN Hose end fitting 1 X 90 degree
16.) Stainless Braid Oil feed Line 2 Feet Vibrant
17.) Silicon Vacuum Hose (X 4 Feet)
18.) Heat Shield with M8x16mm (X2)
19.) 4AN to 4AN 90 Degree Oil Feed Fitting
20.) Oil Return Block Fitting 10AN (use factory bolt and O-ring)
21.) Oil Feed Block Fitting 4AN (use factory bolt and O-ring)
22.) Coolant Block Off Front (use factory bolt and O-ring)
23.) Coolant Block Off Back
24.) Turbo Oil Drain Fitting / with Bolts (qty.2)
25.) M6x12mm Bolts for Intercooler Piping (X3) one for map
26.) Heat Tape (20 Inches)
27.) Vacuum T Fittings (X1)
28.) Stickers and Licenses Plate Frame
29.) 1/8″ NPT Plugs (x2)
Optional Heat Protection Package
A.) Torque solutions heat blanket
B.) Turbo drain and feed line heat sleeve
C.) Vacuum line heat sleeve
