Eventuri Toyota A90 Supra Black Carbon Intake

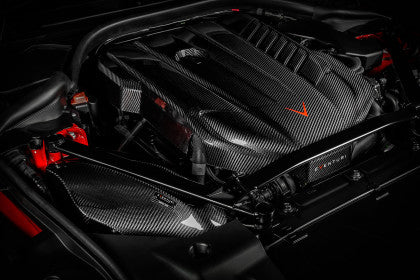

The Eventuri MK5 Supra intake system consists of a number of components engineered to perform a specific purpose and fabricated to the highest of standards. We use 100% pre-preg carbon fiber with no fibreglass which means we can achieve a smooth internal surface to maintain smoother airflow. Here are the details for each component and the design ethos behind them:

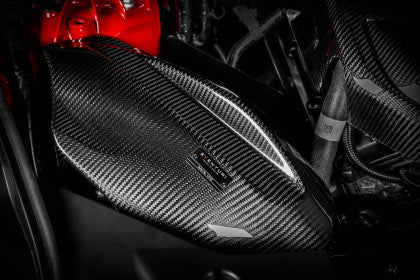

Dual Feed Carbon Fiber Airbox: Crafted from Prepreg Carbon Fiber, the airbox serves 2 objectives - to seal the filter against engine bay heat and to provide a dual cold air feed. Since the airbox is positioned next to the exhaust manifold it is crucial for the filter to be fully sealed so we designed the airbox to encapsulate the filter and at the same time provide a large internal volume. To seal the intake tube we have designed a laser cut plate with a rubber sealing strip which secures to the airbox. The intake tube passes through the plate and the rubber seal ensures heated air does not enter the airbox. To further minimise heat soak, there is an additional heat shield with a gold reflective layer on the exhaust manifold side which effectively combats the radiant heat transfer.

Carbon Inlet Tube: The stock inlet tube has a flexible and convoluted section to provide movement with the engine. This however also adds the possibility of turbulence in the flow path as there are multiple faces which can cause eddies. We replace this with our carbon tube which is smooth and also has a larger internal volume with a huge 111mm (4.4") opening diameter. The tube smoothly tapers down to the stock turbo inlet to ensure airflow remains as laminar as possible. The tube also has CNC machined fitting for the temperature sensor and the breather adapter.

Bespoke Cone Filter: Our cone filter is made from a non-woven mesh material which is double layered and is ISO tested to ensure that filtration is in line with OEM standards. The filter is cleanable and very stable at high temperatures with the base material being Urethane. The filter incorporates and internal flow guiding cone to help aid the airflow to converge while reducing the possibility of a stagnation point in the middle of the filter space. The filter medium has a significantly larger surface volume than the stock panel filter.

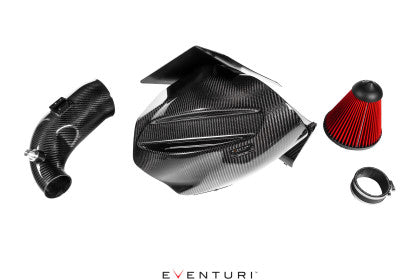

Features

• Carbon Fiber Airbox with Dual Feeds
• Bespoke High Flow Dry Cone Filter
• Carbon Fiber Inlet Tube with 111mm opening ID
• CNC Machined Temperature Sensor Mount
• CNC Machined Breather adapter
• Heat Shield with Gold Reflective Backing
• Laser Cut Stainless Steel Brackets
• Silicon Coupler with OEM Specification Clamps
