CSF HIGH-PERFORMANCE DCT TRANSMISSION OIL COOLER

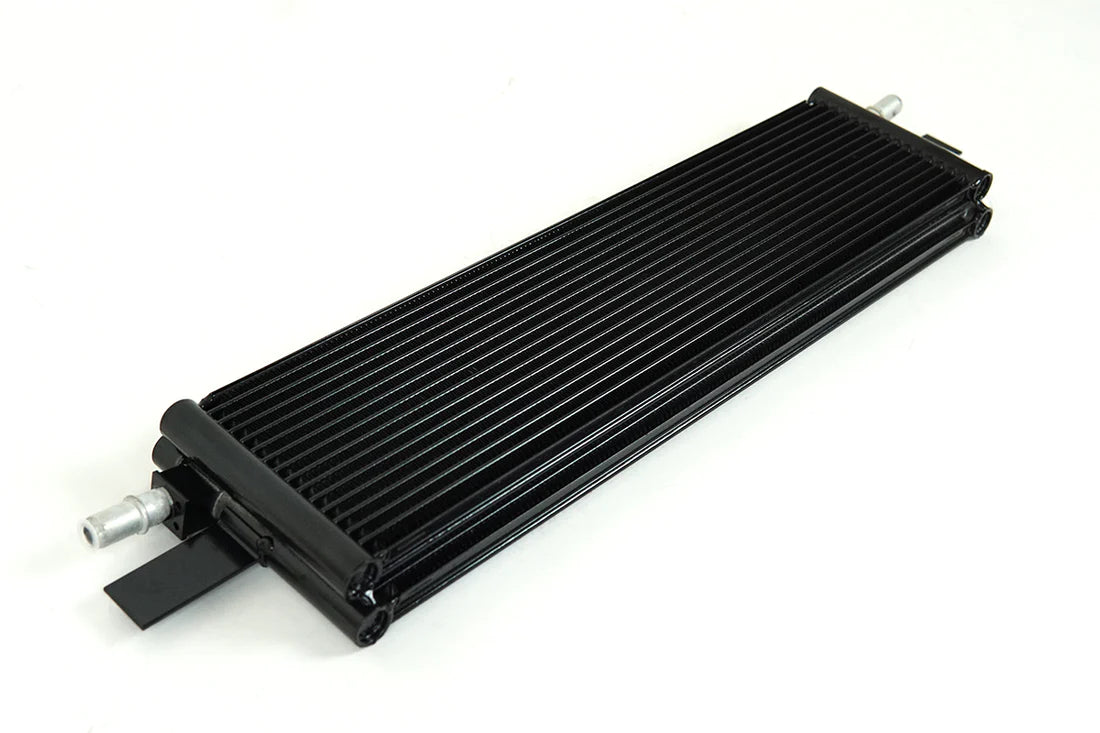

CSF High-Performance DCT Transmission Oil Cooler for Toyota GR Supra (A90/A91)

CSF-8183 Specs:

• Innovative Dual-Core Design (Industry Exclusive) vs. OEM Single Core
• 240% Increase in Core Volume
• 130% Increase in Fluid Capacity Compared to OEM (CSF 550ml vs. OEM ~240ml)
• Two 16mm Stacked Cores = 32mm Core Width (44mm Overall Width) vs. OEM 15mm Core Width
• Rear Cooler: 15 Rows vs. OEM 12 Rows
• Front Cooler: Additional 12 Rows
• 5.4mm Tall Multi-Louvered Fin vs. OEM 7mm
• Made with CSF’s AC Condenser Technology Using a 1-Row Super-High Pressure 16mm 9-Channel Microtube for Optimal Oil Flow and Maximum Surface Area Contact
• 129mm Overall Height vs. OEM 125mm Allows for Maximum Performance Without Increasing Overall Surface Area or Blocking Airflow to Rest of Cooling System
• Utilizes OEM Top/Bottom Rubber Seals for Optimal Airflow
• OEM Style “Quick Connect” Inlet/Outlet Connections
• Drop-in Fit Requires No Modifications to Install
• Can be Installed With CSF’s High-Performance Heat Exchanger (CSF #8154) or with the OEM Cooling System
• 2-Year Limited Warranty
• Ideal for Road Racing, Drag Racing, and Vehicles With Increased Performance and/or Transmission Tuning
